The last post I had did was about the fact that I found through just ordinary search a video of what the device is supposed to look like. The video shows a device much larger than I had imagined or believed about the device. From the Ginza Kojima website they had claimed that the device was patented, with a number 3802917. This got me curious and made me want to find that patent, since I had used Google Patents to find unique ideas and patents for height increase proposed before.
So when I used Google Patents and typed in that #, 3802917, it gave me a patent about Tramp Oil? That was a head scratcher and I would guess that the doctors patented the device in Japan and maybe the country of Japan had a patent device database which is similar to our Google Patent, which they did. Just from typing in the words “japanese patent” into google, I would eventually get directed to the website for Japanese Patent Lawyers Association which had a link to the website http://www.ipdl.inpit.go.jp/homepg_e.ipdl . So I clicked on that link and it took me a website called Industrial Property Digital Library, with a .jp domain showing it was based from some location in Japan. I clicked on the Patent & Utility Model Gazette DB link and it took me to a input chart page. I entered “B” into the “kind code” section and then entered the number given “3802917” into the “number” part and then clicked search.
The results seems to show that the people at the Ginza Kojima place was serious and being honest in the patent.
This is what I copied from the “translated to english” webpages.
Important: The pictures are below the patent information. The complete Analysis on the device will be done in a later post.
* NOTICES *
JPO and INPIT are not responsible for any damages caused by the use of this translation.
1.This document has been translated by computer. So the translation may not reflect the original precisely.
2.**** shows the word which can not be translated.
3.In the drawings, any words are not translated.
CLAIMS – [Claim 1]
A leaning device (5) which makes a stand (3) where a user can lie on the back, and a stand (3) incline, Right and counterrotation a stand (3) in the state of level or an inclination A near cushion (32) which is provided with a rolling mechanism (6) to carry out, assigns both sides of the body of a user who lay on the back on it in the aforementioned stand (3), and supports the body, A trunk fixing belt (33) which fixes the body of the user concerned to a stand (3), and a jaw holding fixture (35) which hangs under a jaw of the user concerned and holds a jaw, A shoulder fastener (36) which takes out from under both the sides of the user concerned on both shoulders, and supports both shoulders, Towage drive mechanism (47) which can be towed down the stand (3) is provided in a leg holding fixture (49) which can hold an ankle of the user concerned, and a leg holding fixture (49), Operation of the aforementioned leaning device (5), a rolling mechanism (6), and towage drive mechanism (7) is controllable at a distribution power board (9), The aforementioned leaning device (5) can adjust an angle of gradient of a stand (3), If it rotates after a position under a trunk central part of the user who is a back side central part of the stand (3), and lies on the back on the upper surface of a stand provided and a stand (3) has inclined, while the head [ of a user who lay on the back on a stand (3) with the rotation ], and leg side will change to a semicircle [ every ] automatic target up and down, the aforementioned rolling mechanism. A body reformation device characterized by making it rotate.
DETAILED DESCRIPTION
[Detailed Description of the Invention] – [Field of the Invention] – [0001]
The present invention corrects a twist of the body and distortion, prepares the balance of the body, and relates to the body reformation device which can improve the blood flow of the body and can be used for maintenance of health, and improvement.
[Background of the Invention] – [0002]
Conventionally, methods of correcting a twist of the body and distortion include manual therapeutics (chiropractic), a massage, etc. a twist of manual therapeutics and the body by massage and reformation of distortion go to a bonesetter, a massage room, etc. — special manual therapeutics — it carries out by undergoing [ which massages the body directly ] an operation of pushing [ to unfold ], pulling, striking from a teacher, a masseur, etc.
[Description of the Invention] – [Problem to be solved by the invention] – [0003]
However, there are the following problems in a twist of manual therapeutics and the body by massage, or reformation of distortion.
(1) Qualification and the skilled skill are required, and when an amateur is going to correct the body by force, there is a possibility of damaging the body on the contrary in manual therapeutics or a massage. therefore — going to a bonesetter or the store of a massage one by one, in order to receive manual therapeutics and a massage — special manual therapeutics — I have to have a teacher and a masseur operated on In this case, it must reserve or go to hospital regularly, it is troublesome, and when there is no margin in time, it is very much hard to receive manual therapeutics and a massage.
(2) manual therapeutics and a massage — special manual therapeutics — in order that a teacher and a masseur may carry out, 1 time of operating expense is high.
[Means for solving problem] – [0004]
The body reformation device of the present invention does not need the skilled skill, but anyone can correct a twist of the body and distortion simply and inexpensive, can prepare the balance of the body, can improve the blood flow of the body, and can use it for maintenance of health, and improvement at any time.
[0005]
TECHNICAL FIELD – [Field of the Invention] – [0001]
The present invention corrects a twist of the body and distortion, prepares the balance of the body, and relates to the body reformation device which can improve the blood flow of the body and can be used for maintenance of health, and improvement.
PRIOR ART – [Background of the Invention] – [0002]
Conventionally, methods of correcting a twist of the body and distortion include manual therapeutics (chiropractic), a massage, etc. a twist of manual therapeutics and the body by massage and reformation of distortion go to a bonesetter, a massage room, etc. — special manual therapeutics — it carries out by undergoing [ which massages the body directly ] an operation of pushing [ to unfold ], pulling, striking from a teacher, a masseur, etc.
EFFECT OF THE INVENTION – [Effect of the Invention] – [0008]
The body reformation device of this application has the following effects.
(1) Since the body can be made straight from the point of the head to a tip of a foot by a user’s making a stand incline in the state where it lay on the back on the stand, or rotating a stand in the state where it was level or inclined, a twist of the body and distortion are corrected and the balance of the body becomes good. The blood flow of the body also becomes good and can be used for maintenance and improvement of health.
(2) Since the body is fixed to a stand by a fastener, even if a stand is leaned or it makes it rotate, there is no fear of the body falling from a stand, and reformation can be received after the user has relaxed.
(3) Since a user only lies on the back on a stand, he does not require unreasonableness for the body but can use it in the natural state.
(4) Manual therapeutics, the special knowledge about a massage, and skillful skill are also unnecessary, and anyone can correct a twist of the body and distortion simply at any time.
(5) If it prepares for the house or the place of work, since there is no trouble which reserves or goes to hospital regularly like [ in the case of going to a bonesetter or a massage store ], and it can be used when a user’s convenience is good, it is convenient. Since it can be used expense’s not starting, either but continuing every day, it is effective.
[0009]
Since the body reformation device of this application is provided with a leg holding fixture and the towage drive mechanism which tows it, in addition to each above-mentioned effect, there are the following effects.
(1) If an ankle, a knee, a thigh, etc. are held with a leg holding fixture and the leg holding fixture is towed with towage drive mechanism, the joint of the root of a knee or a leg can be lengthened straight and a twist of the body and distortion can be corrected. Height can also be lengthened.
[0010]
Since the body reformation device of this application is provided also with the jaw holding fixture holding the jaw of the user who lay on the back on the stand, in addition to each above-mentioned effect, it has the following effects.
(1) If an ankle, a knee, a thigh, etc. are held with the aforementioned leg holding fixture, and the jaw of the person on a stand is held with a jaw holding fixture when towing the leg holding fixture with towage drive mechanism, it can lengthen straight to a leg flatly and a twist of the body and the straightening effect of distortion are high.
TECHNICAL PROBLEM – [Problem to be solved by the invention] – [0003]
However, there are the following problems in a twist of manual therapeutics and the body by massage, or reformation of distortion.
(1) Qualification and the skilled skill are required, and when an amateur is going to correct the body by force, there is a possibility of damaging the body on the contrary in manual therapeutics or a massage. therefore — going to a bonesetter or the store of a massage one by one, in order to receive manual therapeutics and a massage — special manual therapeutics — I have to have a teacher and a masseur operated on In this case, it must reserve or go to hospital regularly, it is troublesome, and when there is no margin in time, it is very much hard to receive manual therapeutics and a massage.
(2) manual therapeutics and a massage — special manual therapeutics — in order that a teacher and a masseur may carry out, 1 time of operating expense is high.
MEANS – [Means for solving problem] – [0004]
The body reformation device of the present invention does not need the skilled skill, but anyone can correct a twist of the body and distortion simply and inexpensive, can prepare the balance of the body, can improve the blood flow of the body, and can use it for maintenance of health, and improvement at any time.
[0005]
The leaning device 5 toward which the body reformation device of an application concerned makes the stand 3where a user can lie on the back, and the stand 3 incline, Right and counterrotation the stand 3 in the state of level or an inclination The near cushion 32 which is provided with the rolling mechanism 6 to carry out, assigns the both sides of the body of the user who lay on the back on it in the aforementioned stand 3, and supports the body, The trunk fixing belt 33 which fixes the body of the user concerned to the stand 3, and the jaw holding fixture 35 which hangs under the jaw of the user concerned and holds a jaw, The shoulder fastener 36 which takes out from under both the sides of the user concerned on both shoulders, and supports both shoulders, The towage drive mechanism 47 which can be towed down the stand 3 is provided in the leg holding fixture 49 which can hold the ankle of the user concerned, and the leg holding fixture 49, Operation of the aforementioned leaning device 5, the rolling mechanism 6, and the towage drive mechanism 7 is controllable at the distribution power board 9, The aforementioned leaning device 5 can adjust the angle of gradient of the stand 3, If it rotates after the position under the trunk central part of the user who is a back side central part of the stand 3, and lies on the back on the upper surface of a stand provided and the stand 3 has inclined, while the head [ of the user who lay on the back on the stand 3 with the rotation ], and leg side will change to a semicircle [ every ] automatic target up and down, it is made for the aforementioned rolling mechanism to rotate.
[0006]
[0007]
DESCRIPTION OF DRAWINGS – [Brief Description of the Drawings] – [0048]
[Drawing 1] The front view showing an example of the embodiment of the body reformation device of the present invention.
[Drawing 2] The plan view of the body reformation device shown in Fig.1.
[Drawing 3] The plan view of the unused state of the body reformation device shown in Fig.1.
[Drawing 4] The right side view of the body reformation device shown in Fig.1.
[Drawing 5] The front view showing signs that the stand of the body reformation device shown in Fig.1 was made to incline (about 20 angles of gradient).
[Drawing 6] The front view showing signs that the stand of the body reformation device shown in Fig.1 was made to incline (about 45 angles of gradient).
[Drawing 7] The plan view showing other examples of the fastener of the body reformation device of the present invention.

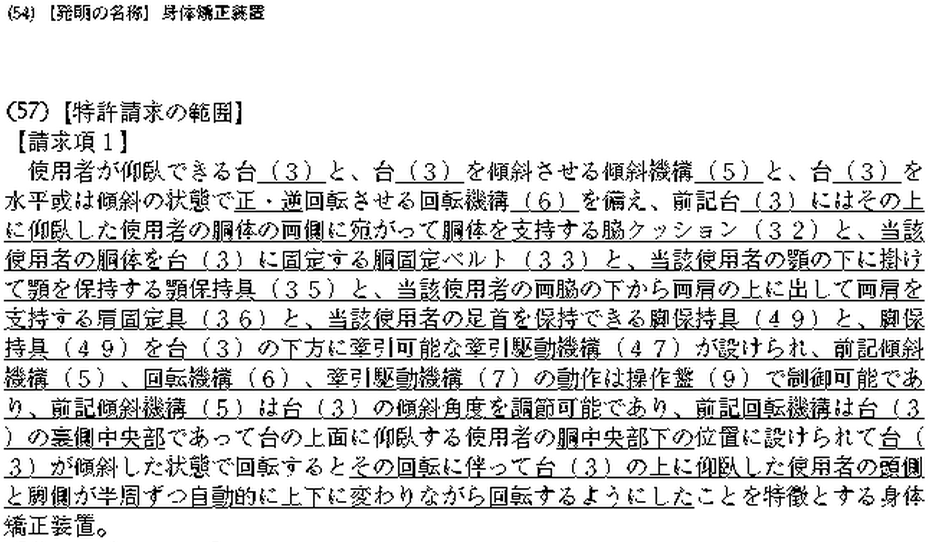

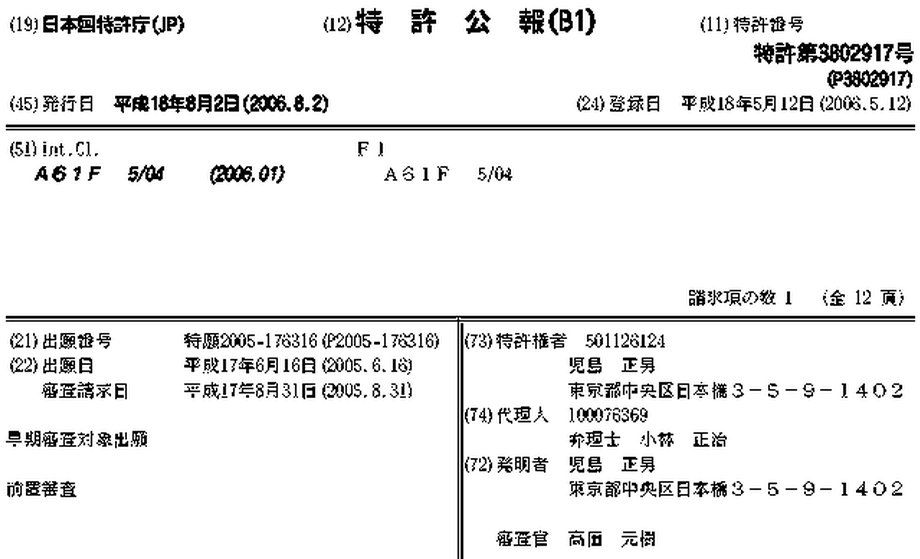

Now we have the actual patent application of ceritficate. Again, I can’t read Japanese so I don’t know what it says. But the patent is clearly legitimate.
